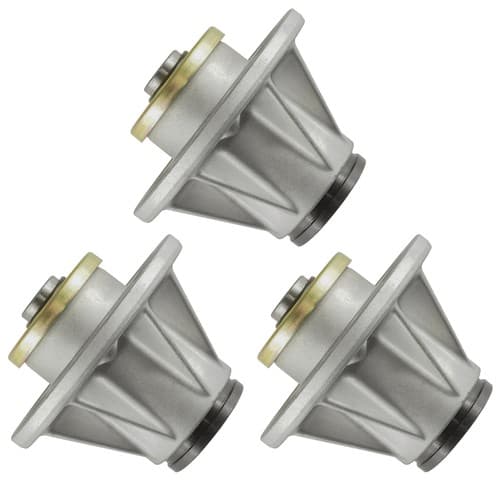

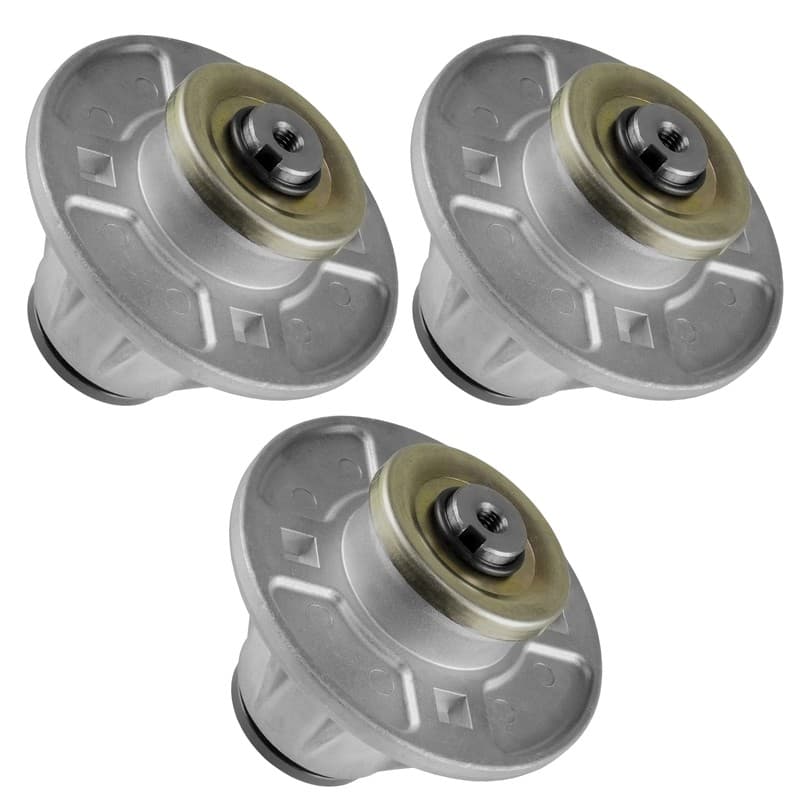

3 Spindle Assembly For Gravely ZT1640 ZT1844 ZT2048 ZT2252 ZT1540 51510000

 Premium Quality Replacement Part

Spindle Assembly

Compatible with Ariens Models:

911403 (000101- ) Waw 1034

911407 (000101- ) Waw 1034 Carb

915035 (000101 - ) Zoom 1640, 16hp B&S, 40" Deck

915037 (000101 - ) Zoom 1844, 18hp B&S, 44" Deck

915039 (000101 - ) Zoom 2048, 20hp B&S, 48" Deck

915041 (000101 - ) Zoom 2252, 22hp B&S, 52" Deck

915043 (000101 - 004999) Zoom 1540, 15hp B&S, 40" Deck

915043 (005000 - ) Zoom 1540, 15hp B&S, 40" Deck

915051 (000101 - 004999) Zoom 1640, 16hp B&S, 40" Deck

915051 (005000 - ) Zoom 1640, 16hp B&S, 40" Deck

915055 (000101 - 004999) Zoom 1944, 19hp, 44" Deck

915055 (005000 - 009999) Zoom 1944, 19hp, 44" Deck

915055 (010000 - ) Zoom 1944, 19hp, 44" Deck

915057 (000101 - 004999) Zoom 2048, 20hp, 48" Deck

915057 (005000 - 009999) Zoom 2148, 21hp, 48" Deck

915057 (010000 - ) Zoom 2148, 21hp, 48" Deck

915059 (000101 - 004999) Zoom 2352, 23hp, 52" Deck

915059 (005000 - 009999) Zoom 2352, 23hp, 52" Deck

915059 (010000 - ) Zoom 2352, 23hp, 52" Deck

915061 (000101 - 004999) Mini-Zoom 1434

915075 (020000 - 024999) Zoom 1640, 16hp, 40" Deck

915075 (025000 - ) Zoom 1640, 16hp, 40" Deck

915077 (020000 - 024999) Zoom 1840, 18hp, 40" Deck

915077 (025000 - ) Zoom 1840, 18hp, 40" Deck

915079 (020000 - 024999) Zoom 2044, 20hp, 44" Deck

915079 (025000 - ) Zoom 2044, 20hp, 44" Deck

915081 (020000 - 024999) Zoom 2348, 23hp, 48" Deck

915081 (025000 - ) Zoom 2348, 23hp, 48" Deck

915083 (020000 - 024999) Zoom 2552, 25hp, 52" Deck

915083 (025000 - ) Zoom 2552, 25hp, 52" Deck

915101 (000101 - ) Zoom 1634, 16hp B&S, 34" Deck

915103 (000101 - ) Zoom 1840

915105 (000101 - ) Zoom 2150

915107 (000101 - ) Zoom 2450

915107 (000101 - ) Zoom 2450, 23hp B&S, 50" Deck

915111 (000101 - ) Zoom 1842, 18hp B&S, 42" Deck

915113 (000101 - ) Zoom 2448, 24hp B&S, 48" Deck

915133 (000101 - ) Zoom 2040

915135 (000101 - ) Zoom 2350

915137 (000101 - 005999) Zoom Xl 2042, 20hp Koh., 42" Deck

915137 (006000 - ) Zoom Xl 2042, 20hp Koh., 42" Deck

915139 (000101 - 005999) Zoom Xl 2548, 25hp Koh., 48" Deck

915139 (006000 - ) Zoom Xl 2548, 25hp Koh., 48" Deck

915145 (000101 - ) Zoomxl 42, 22hp Kaw., 42" Deck

915147 (000101 - ) Zoomxl 48, 24hp Kaw., 48" Deck

915149 (000101 - ) Zoomxl 54, 24hp Kaw., 54" Deck

915163 (000101 - 009999) Zoom Xl 42, 22hp Kaw., 42" Deck

915163 (010000 - 019999) Zoom Xl 42, 22hp Kaw., 42" Deck

915163 (020000 - 020999) Zoom Xl 42

915163 (021000 - 034999) Zoom Xl 42, 22hp Courage Twin, 42" Mower

915163 (035000 - 044999) Zoom Xl 42

915163 (045000 - ) Zoom Xl 42

915165 (000101 - 009999) Zoom Xl 48, 24hp Kaw., 48" Deck

915165 (010000 - 019999) Zoom Xl 48, 24hp Kaw., 48" Deck

915165 (020000 - 020999) Zoom Xl 48

915165 (021000 - 034999) Zoom Xl 48, 23hp Courage Twin, 48" Mower

915165 (035000 - 044999) Zoom Xl 48

915165 (045000 - ) Zoom Xl 48

915167 (000101 - ) Zoom Xl 54, 24hp Kaw., 54" Deck

915316 (005000 - 019999) Mini-Zoom 1434 Ce

915316 (020000 - ) 15hp Kaw., 34" Mower (1434)

915317 (025000 - ) Zoom 1540, 15hp Kaw., 40" Deck

915318 (025000 - ) Zoom 1744, 15hp Kaw., 44" Deck

915319 (000101 - ) Zoom 1634, 16hp B&S, 34" Deck

915320 (000101 - ) Zoom 1840, 18hp B&S, 40" Deck

915321 (000101 - 004999) Zoom 1842, 18hp B&S, 42" Deck

915321 (005000 - 005999) Zoom 1842, 18hp B&S, 42" Deck

915321 (006000 - 009999) Zoom 1842, 18hp B&S, 42" Deck

915321 (010000 - 019999) Zoom Xl Ce

915321 (020000 - 020999) Zoom Xl Ce

915321 (021000 - 029999) Zoom Xl Ce, 18hp B&S, 42" Mower

915321 (030000 - 034999) Zoom Xl Ce

915321 (035000 - 039999) Zoom Xl Ce

915321 (040000 - 044999) Zoom Xl Ce

915321 (045000 - ) Zoom Xl Ce

915501 (000101 - 004999) Zoom 1844, 18hp B&S, 44" Deck

915501 (005000 - 009999) Zoom 1844, 18hp B&S, 44" Deck

915501 (010000 - 019999) Zoom 1844, 18hp B&S, 44" Deck

915501 (020000 - ) Zoom 1744, 17hp Kaw., 44" Deck

992142 (000101 - ) Zoom 2348xl, 23hp, 48" Deck

Compatible with Gravely Models:

911404 (000101 - 002000) Waw 34, 10.5hp B&S, 34" Deck

911404 (002001 - ) Waw 34

911408 (000101 - 002000) Waw 34, 10.5hp B&S Carb, 34" Deck

911408 (002001 - ) Waw 34 Carb

915034 (000101 - ) Zt1640, 16hp B&S, 40" Deck

915036 (000101 - ) Zt1844, 18hp B&S, 44" Deck

915038 (000101 - ) Zt2048, 20hp B&S, 48" Deck

915040 (000101 - ) Zt2252, 22hp B&S, 52" Deck

915042 (000101 - 004999) Zt1540, 15hp, 40" Deck

915042 (005000 - 009999) Zt1540, 15hp, 40" Deck

915042 (010000 - ) Zt1540, 15hp, 40" Deck

915044 (000101 - 004999) Zt1740, 17hp, 40" Deck

915044 (005000 - 009999) Zt1740, 17hp, 44" Deck

915044 (010000 - ) Zt1740, 17hp, 40" Deck

915046 (000101 - 004999) Zt1944, 19hp, 44" Deck

915046 (005000 - 009999) Zt1944, 19hp, 44" Deck

915046 (010000 - ) Zt1944, 19hp, 44" Deck

915048 (000101 - 004999) Zt2148, 21hp, 48" Deck

915048 (005000 - 009999) Zt2148, 21hp, 48" Deck

915048 (010000 - ) Zt2148, 21hp, 48" Deck

915064, 915070 (020000 - ) Mini-Zt 1534

915074 (020000 - ) Zt 1640, 16hp, 40" Deck

915076 (020000 - 034999) Zt 1840, 18hp, 40" Deck

915076 (035000 - ) 18hp, 40" Deck

915078 (020000 - 034999) Zt 2044, 20hp, 44" Deck

915078 (035000 - ) 20hp, 44" Deck

915080 (020000 - 034999) Zt 2348, 23hp, 48" Deck

915080 (035000 - ) 23hp, 48" Deck

915082 (020000 - 034999) Zt 2552, 25hp, 52" Deck

915102 (000102 - ) 2040 Zt

915104 (000101 - ) 2250 Zt

915106 (000101 - ) Zt 2350, 23hp, 50" Deck

915108 (000101 - ) Ztxl 1734, 17hp, 34" Mower

915110 (000101 - 004999) Ztxl 2042, 20hp, 42" Deck

915110 (005000 - 005999) Ztxl 2042, 20hp, 42" Deck

915110 (006000 - ) Ztxl 2042, 20hp, 42" Deck

915112 (000101 - ) Ztxl 2548, 25hp, 48" Deck

915114 (000101 - ) Ztxl 2554, 25hp, 54" Deck

915116 (000101 - ) Zt 2450, 24hp B&S, 50" Deck

915118 (000101 - ) Ztxl 1842, 18hp B&S, 42" Deck

915120 (000101 - ) Ztxl 2448, 24hp B&S, 48" Deck

915122 (000101 - ) Ztxl 1734 Carb, 17hp, 34" Mower

915132 (000101 - ) 2350 Zt

915134 (000101 - 005999) Ztxl 2042, 20hp Koh., 42" Deck

915134 (006000 - ) Ztxl 2042, 20hp Koh., 42" Deck

915136 (000101 - 005999) Ztxl 2548, 25hp Koh. 48" Deck

915136 (006000 - ) Ztxl 2548, 25hp Koh. 48" Deck

915138 (000101 - 005999) Ztxl 2554, 25hp Koh. 54" Deck

915138 (006000 - ) Ztxl 2554, 25hp Koh. 54" Deck

915162 (010000 - 019999) Ztxl 48, 24hp Kaw., 48" Deck

915162 (020000 - 020999) Zt Xl 48

915162 (021000 - 029999) Zt Xl 48, Fr730 Kaw., 48" Mower

915162 (030000 - 034999 ) Zt Xl 48"

915162 (035000 - ) Zt Xl 48

915164 (000101 - 009999) Zt Xl 54, 24hp Kaw., 54" Deck

915164 (010000 - 019999) Ztxl 54, 24hp Kaw., 54" Deck

915164 (020000 - 020999) Zt Xl 54

915164 (021000 - 029999) Zt Xl 54, Fr730 Kaw., 54" Mower

915164 (030000 - 034999 ) Zt Xl 54"

915326 (035000 - 039999) Zt Xl Ce

915326 (040000 - 044999) Zt Xl Ce

915326 (045000-) Zt Xl Ce

915400 (000101 - ) Everride Yj 40"

915401 (000101 - ) Everride Yj 44"

915402 (000101 - ) Everride Yj 40"

915403 (000101 - ) 2040 Yj

915404 (000101 - ) 2550 Yj

915600 (000101 - ) 1840, 915601 (000101 - ) 2044

Order Includes:

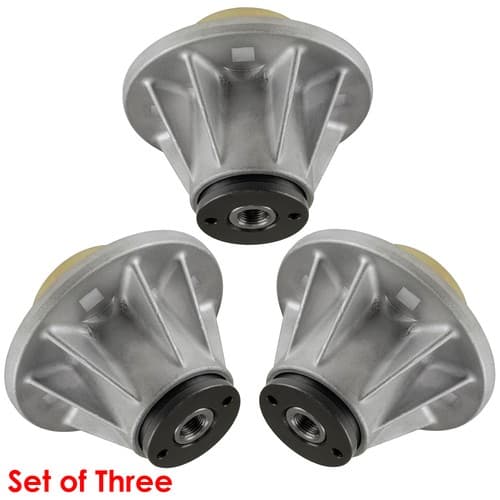

3x Spindle Assembly:  Ariens: 51510000, 61527600, 61543800,

Gravely: 51510000, 61527600, 61543800

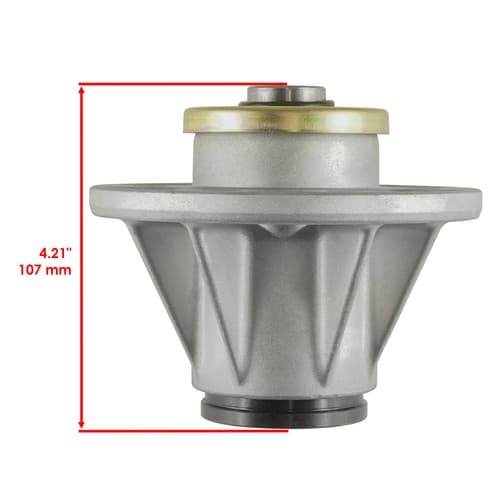

Length: 107 mm - 4.21 in

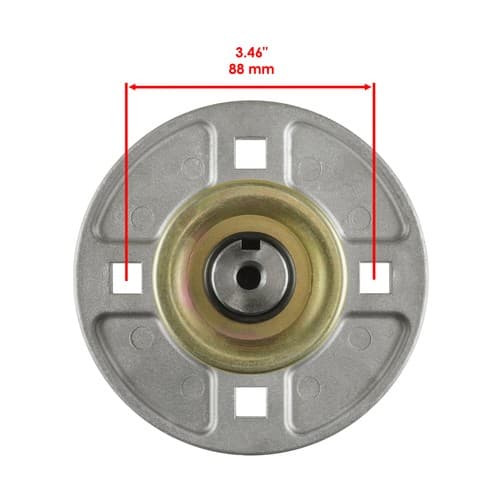

Mounting Hole Distance: 92 (65) mm Blade

Thread Size: M16-1.5

Pulley Thread Size: 3/8-16
