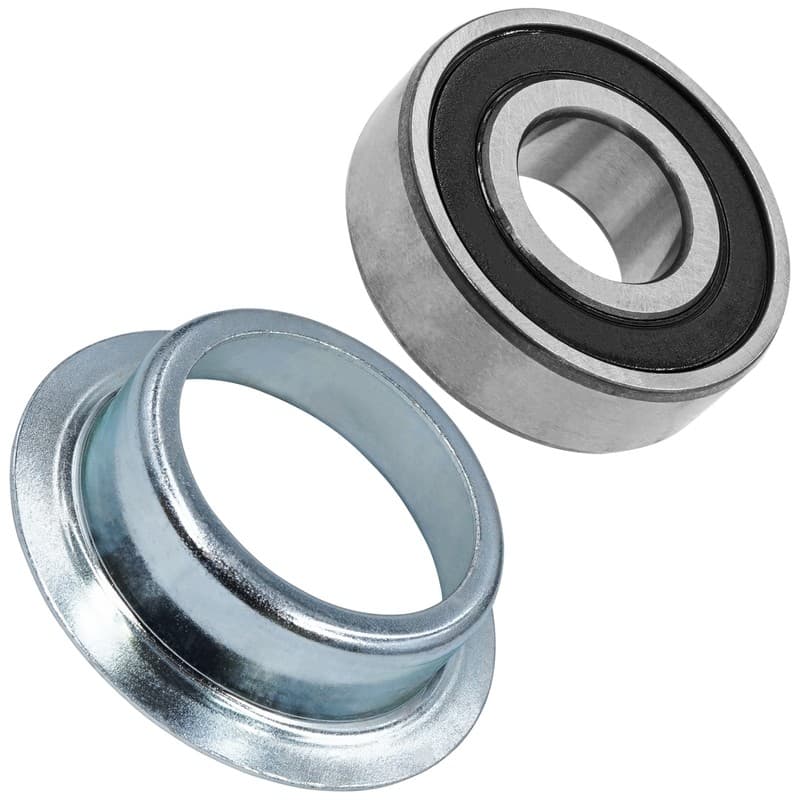

138-3217 108-3790 38-7820 100-1048 Belt Retainer w/ Ball Bearing for Toro Exmark

 Premium Quality Replacement Part

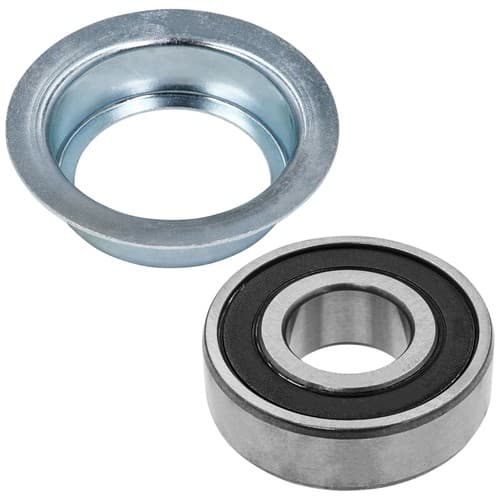

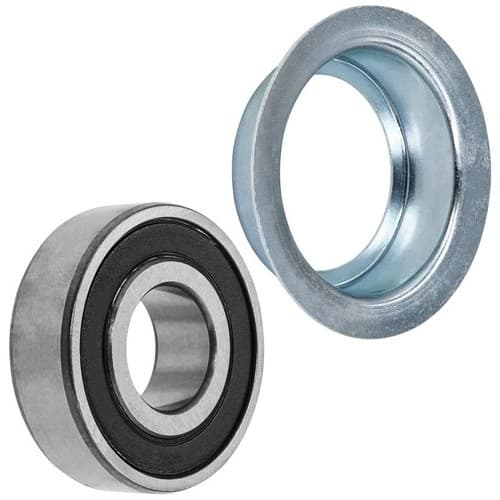

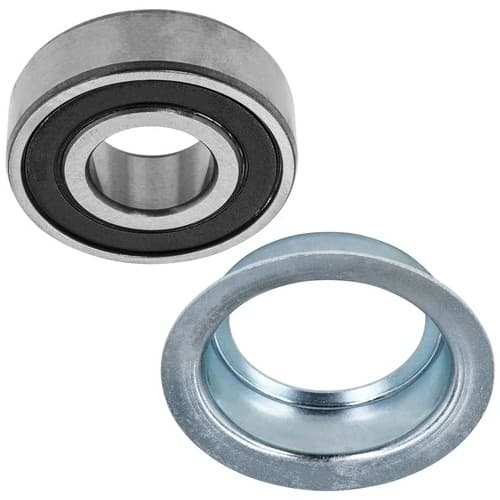

Belt Retainer with Ball Bearing



Compatible with Exmark Models:



X-Series Walk-Behind Mower
Ecx180cka210bc 21" Kw Fj180v Bbc (Sn: 315000000 - 416150474) (Rev A) (2015-2023)
Ecx180gka210bc 21" Kw Fj180v (Sn: 416150475 - 417930746 & Above) (Rev A) (2024-2025)
Ecxhnbbc21 21" Hn Gxv Bbc (Sn: 000920000 - 000999999) (2011)
Ecxhnbbc21 21" Hn Gxv Bbc (Sn: 312000000 - 312999999) (2012-2013)
Ecxkabbc21 21" Kw Fj180v Bbc (Sn: 000920000 - 000999999) (2011)
Ecxkabbc21 21" Kw Fj180v Bbc (Sn: 312000000 - 314999999) (2012-2014)
Commercial Walk-Behind Mower
Ec21ashn 21" (Sn: 850000 - 919999) (2010)
Ec21aska 21" Kw (Sn: 850000 - 919999) (2010)
Ec21askap 21" Kw (Sn: 850000 - 919999) (2010)
Ec21hnbbc 21" Bbc (Sn: 850000 - 919999) (2010)
Ec21hnbbcx 21" X-Series Honda, Bbc (Sn: 850000 - 919999) (2010)
Ec21ka 21" Kw (Sn: 850000 - 919999) (2010)
Ec21kabbc 21" Kw Bbc (Sn: 850000 - 919999) (2010)
Ec21kabbcca 21" Kw Bbc, Carb (Sn: 850000 - 919999) (2010)
Ec21kabbcx 21" X-Series Kw Bbc (Sn: 850000 - 919999) (2010)
Ec21kabbcy 21" Y-Series Kw Bbc (Sn: 850000 - 919999) (2010)
Ec21kaca 21" Kw Carb (Sn: 850000 - 919999) (2010)
Ec21kax 21" X-Series Kw (Sn: 850000 - 919999) (2010)
Ec21kay 21" Y-Series Kw (Sn: 850000 - 919999) (2010)

Compatible with Toro Models:

Recycler Walk-Behind Mower

02657 Prostripe 560 (Sn: 404000000 - 999999999)

20047 22" (Sn: 260000001 - 260999999) (2006)

20056 (Sn: 250000001 - 270999999) (2005-2007)

20058 (Sn: 250000001 - 260999999) (2005-2006)

20068 22" (Sn: 280000001 - 280999999) (2008)

20075 22" (Sn: 270000001 - 270999999) (2007)

20076 / A 22" (Sn: 270000001 - 270999999) (2007)

20093 (Sn: 280000001 - 290999999) (2008-2009)

20093 C (Sn: 280000001 - 290999999) (2008-2009)

20194 (Sn: 290000001 - 290999999) (2009)

20197 (Sn: 310000001 - 311999999) (2010-2011)

20333 22" (Sn: 290000001 - 290999999) (2009)

20333 22" (Sn: 310000001 - 313999999) (2010-2013)

20333 22" (Sn: 314000001 - 999999999)

20333 C 22" (Sn: 310000001 - 312999999) (2010-2012)

20373 22" (Sn: 314000001 - 999999999)

20383 (Sn: 315000001 - 999999999)

20958 55cm (Sn: 315000001 - 999999999)

21383 (Sn: 400000000 - 999999999)

21389 (Sn: 400000000 - 999999999)

21463 22" (Sn: 400000000 - 999999999)

21563 21" (Sn: 400000000 - 412146708)

21764 55cm (Sn: 400000000 - 999999999)

21772 55cm (Sn: 400000000 - 999999999)

22280 53cm (Sn: 400000000 - 999999999)

22285 53cm (Sn: 400000000 - 999999999)

22293 53cm (Sn: 400000000 - 402019999)

22296 21" (Sn: 400000000 - 999999999)

22298 21" (Sn: 400000000 - 999999999)

Hayter Walk-Behind Mower

455 E 21" (Sn: 455e280000001 - 455e280999999) (2008)

455 E 21" (Sn: 455e290000001 - 455e290999999) (2009)

455 E 21" (Sn: 455e310000001 - 455e310999999) (2010)

Lawn-Boy Walk-Behind Mower

10605 20" (Sn: 311000001 - 312999999) (2011-2012)

10625 20" (Sn: 311000001 - 311999999) (2011)

10658 20" (Sn: 310000001 - 310999999) (2010)

10687 Insight (Sn: 260000001 - 260999999) (2006)

10697 Insight Gold (Sn: 250000001 - 260999999) (2005-2006)

10797 Insight Platinum (Sn: 270000001 - 270999999) (2007)

Order Includes:

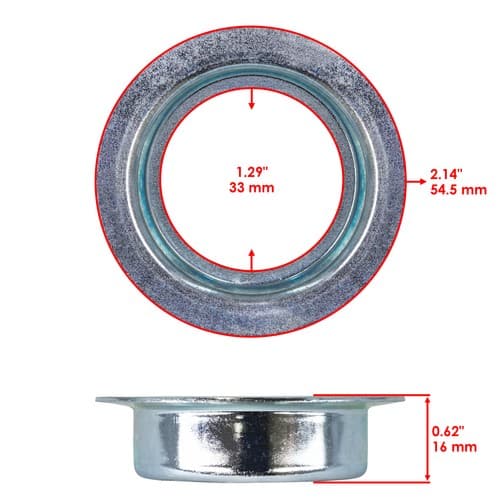

1x Belt Retainer:Toro: 138-3217, 108-3790;

Exmark: 138-3217, 108-3790



Inner Diameter: 33 mm - 1.29 in
Outer Diameter: 54.5 mm - 2.14 in
Height: 16 mm - 0.62 in

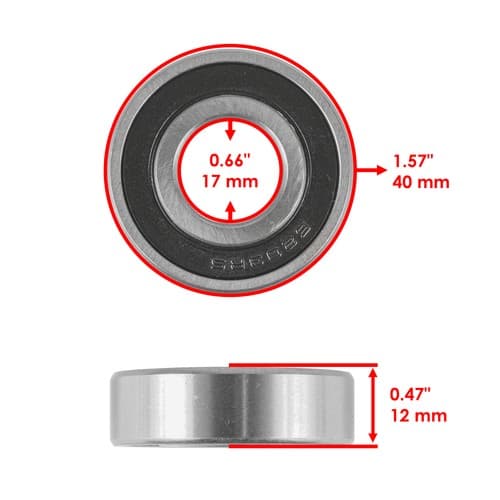

1x Ball Bearing: Toro: 387820, 1001048, 1120423, 109966,

702581, 251-277, 108-3765, 61-8780, 73-5850,

106084, 106085, 37-0200, 1099379

Inner Diameter: 17 mm - 0.67 in

Outer Diameter: 42 mm - 1.57 in

Height: 12 mm - 0.47 in
