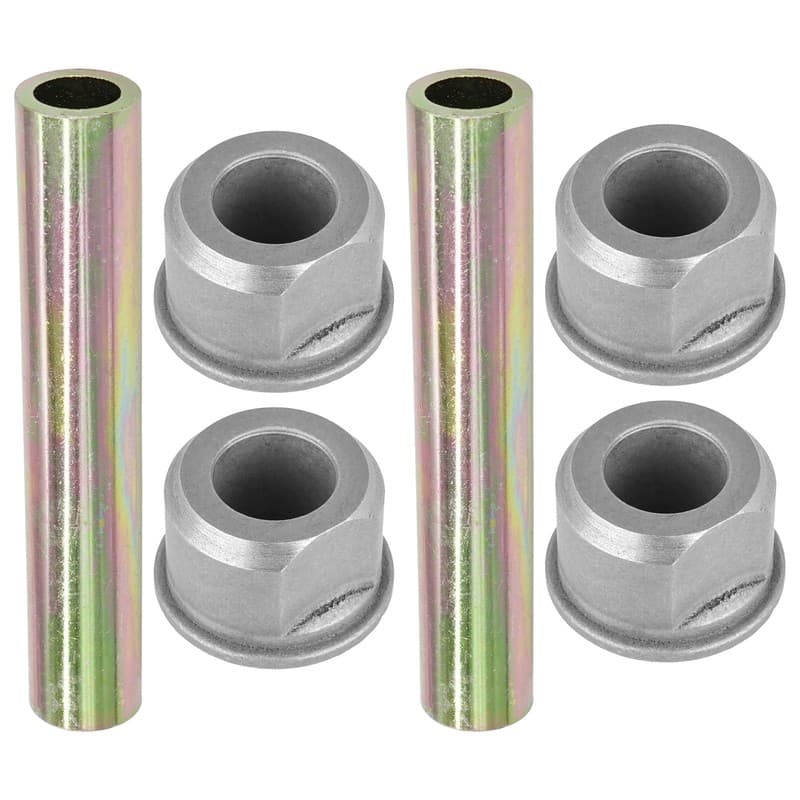

104-3667 114-1640 Wheel Spanner & Flange Bushings For Exmark For Lawn-Boy

Mower Wheel Spanner and Flange Bushings

Compatible With Lawn-Boy Models:

Precision Zero-Turn Mower
(Sn: 260000001–260999999) (2006)
81240 (Sn: 250000001–250999999) (2005)
81242 (Sn: 250000001–250999999) (2005)
81243 (Sn: 260000001–260999999) (2006)
81245 (Sn: 260000001–260999999) (2006)
81245 (Sn: 270000001–270999999) (2007)
81246 (Sn: 260000001–260999999) (2006)
81250 (Sn: 260000001–260999999) (2006)
81270 (Sn: 280000001–280999999) (2008)
Z 310 81228, 81235 (Sn: 250000001–250999999) (2005)
Z 320 H 81230 (Sn: 250000001–250999999) (2005)
Z 330 Lx 81229 (Sn: 250000001–250999999) (2005)
Z 340 Hlx 81245 (Sn: 250000001–250999999) (2005)
Z 3400 Hlx 81270 (Sn: 270000001–270999999) (2007)
Z 350 Hlx 81250 (Sn: 250000001–250999999) (2005)
Z 3500 Hlx 81271 (Sn: 280000001–280999999) (2008)

Compatible With Exmark Models:

Quest Zero-Turn Mower
Qst20be422 20hp B&S (Sn: 790000–919999) (2009-2010)
Qst22be482 22hp B&S (Sn: 670000–919999) (2007-2010)
Qst23kc482 23hp Koh. (Sn: 720000–789999) (2008)
Qst23kc522 23hp Koh. (Sn: 720000–789999) (2008)
Qst24be522 24hp B&S (Sn: 670000–919999) (2007-2010)
Qt22ka421 22hp Kw. (Sn: 920000–999999) (2011)
Qte452cem42100 (Sn: 316000000–402082299) (2016-2017)
Qte452cem42200 (Sn: 316000000–402082299) (2016-2017)
Qte651ka421kw. Fr651v (Sn: 313000000–314999999) (2013-2014)
Qte708gem42100 (Sn: 315000000–315999999) (2015)
Qte708gem42200 (Sn: 400000000–402082299) (2017)
Qte735kc421 Koh. Kt735 (Sn: 314000000–314999999) (2014)
Qts452cem34200 (Sn: 315000000–402082299) (2015-2017)
Quest E-Series Zero-Turn Mower
Quest S-Series Zero-Turn Mower

Compatible With Toro Models:

RZT 420 H Zero-Turn Mower
136 E (SN: 136E280000001–136E280999999) (2008)
TimeCutter Zero-Turn Mower
14-38 Z 74301 (Sn: 230000001–230999999) (2003)
16-42 Z 74325 (Sn: 230000001–230999999) (2003)
17-42 Z 74350 (Sn: 230000001–230999999) (2003)
18-44 Z 74351 (Sn: 240000001–240999999) (2004)
74301 (Sn: 240000001–240000893) (2004)
74301 (Sn: 240000894–240999999) (2004)
74325 (Sn: 240000001–240999999) (2004)
74327 (Sn: 260000001–260999999) (2006)
74330 (Sn: 230000001–230999999) (2003)
74330 (Sn: 240000001–240999999) (2004)
74330 (Sn: 250000001–250999999) (2005)
74353 (Sn: 260000001–260999999) (2006)
74360 (Sn: 280000001–280999999) (2008)
74360 (Sn: 290000001–290999999) (2009)
74360 (Sn: 310000001–310999999) (2010)
74363 (Sn: 290000001–290000504) (2009)
Z 380 74301 (Sn: 250000001–250999999) (2005)
Z 420 74325 (Sn: 250000001–250999999) (2005)
Z 4200 74360 (Sn: 270000001–270999999) (2007)
Z 4220 74363 (Sn: 280000001–280999999) (2008)
Z 480 74352 (Sn: 250000001–250999999) (2005)

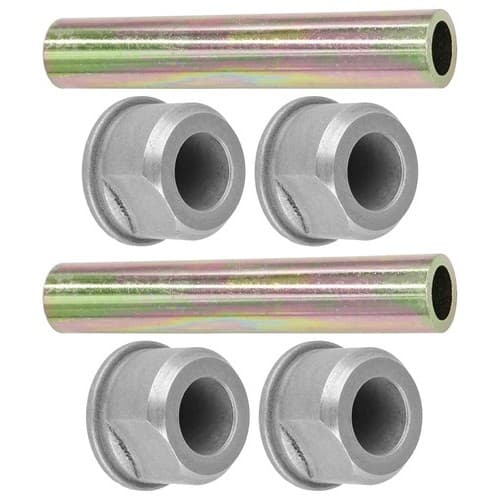

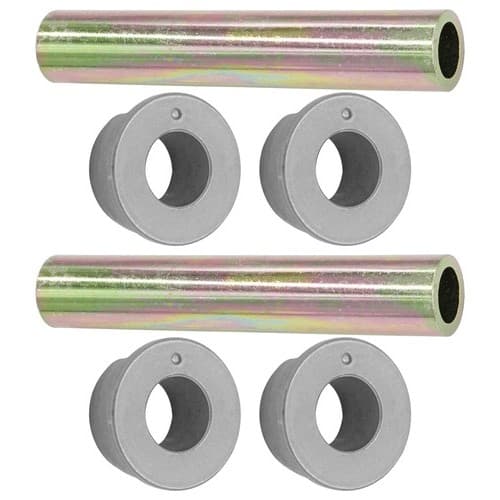

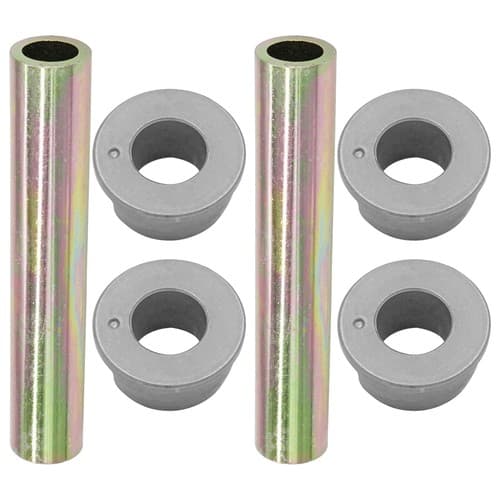

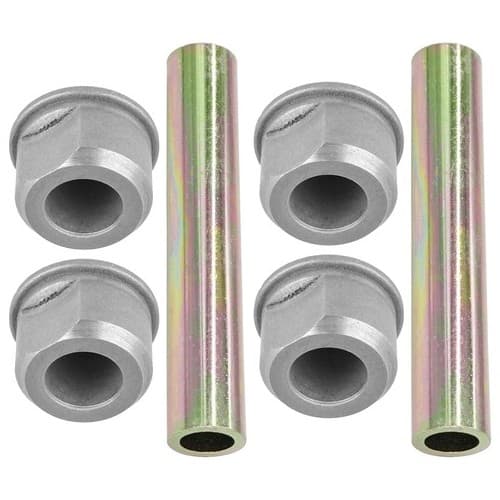

Order Includes:

2 x Spanner Bushing: 104-3667, 104-3667

Inner Diameter: 13 mm - 0.51 in
Outer Diameter: 19 mm - 0.74 in
Length: 110 mm - 4.33 in

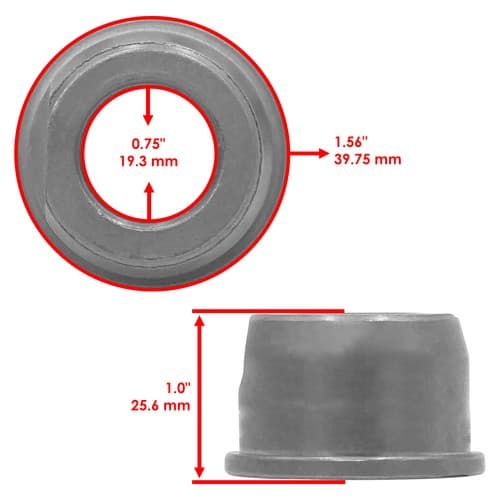

4 x Flange Bushing: 114-1640, 114-1640 114-1640

Width: 25.6 mm - 1 in
Inner Diameter: 19.3 mm - 0.75 in
Outer Diameter: 39.75 - 1.56 in
