Specifications
- MPN
- 07331067, 09242500, 58810800, 59202600, 59225700, 59215400, 69219700, 69221300, 59114000, 59201000, 59215500, 59225800, 09239400, 59109800
- Mpn
- 07331067, 09242500, 58810800, 59202600, 59225700, 59215400, 69219700, 69221300, 59114000, 59201000, 59215500, 59225800, 09239400, 59109800
- UPC
- Does not apply
- Type
- Deck Pulley
- Brand
- Caltric
- Color
- Black
- Model
- For Ariens: 07331067, 09242500
- Gtin13
- Does not apply
- Voltage
- 12 V
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Horsepower
Description
Premium Quality Replacement Part

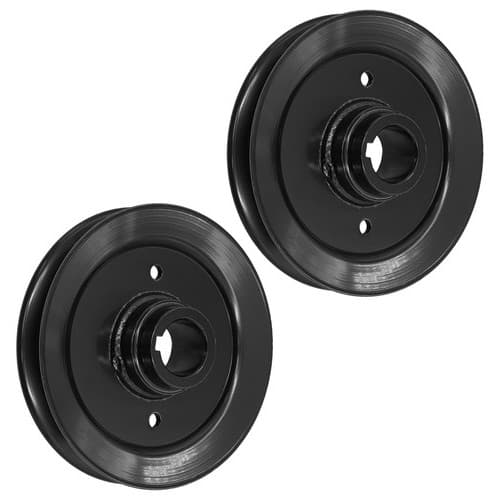

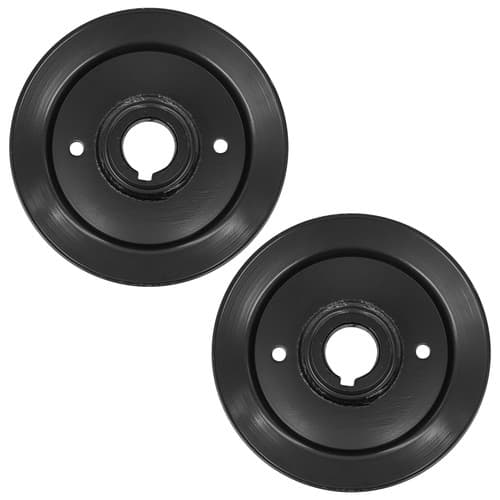

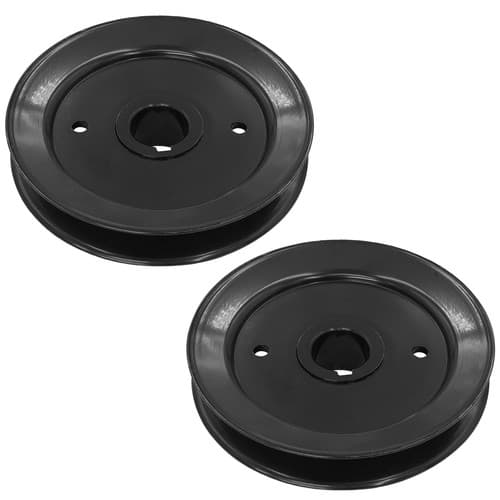

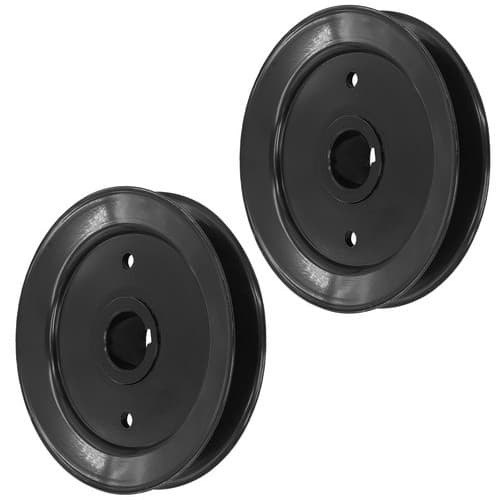

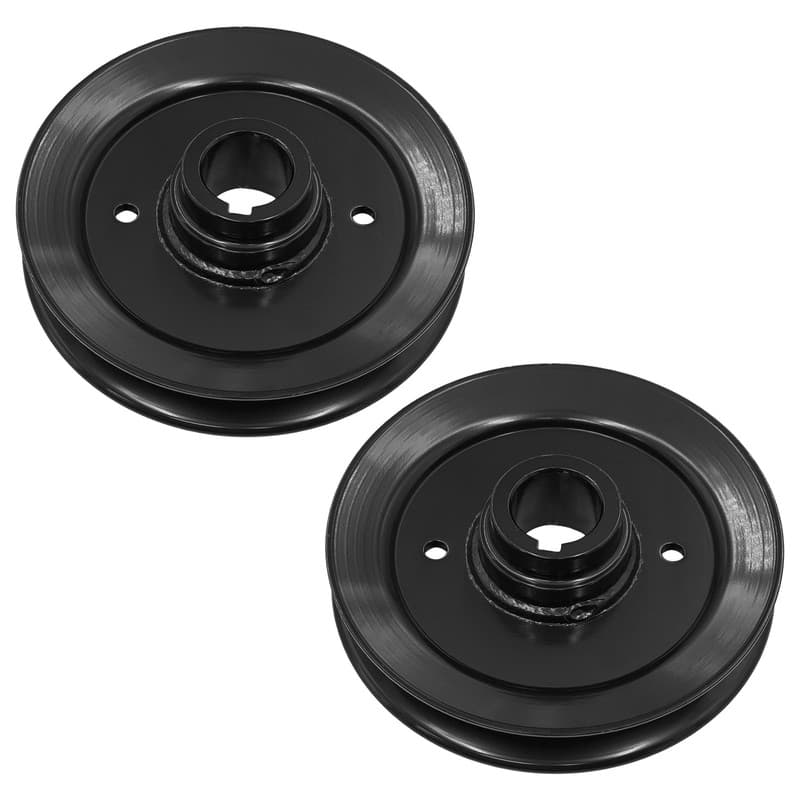

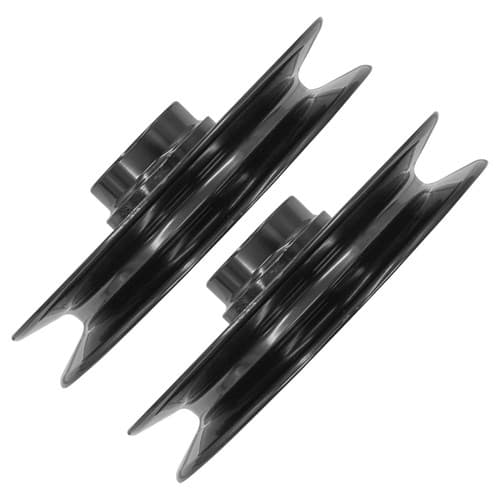

Mower Deck Spindle Pulleys
Compatible with Ariens Models:
Rear-Discharge Deck
888305 32" (Sn: 000101 & Above)
888306 36" (Sn: 000101 & Above)
Side-Discharge Deck
888308 48" (Sn: 000101 & Above)
Walk-Behind Mower Kw. Engine
32" 13hp (Gr1332fxpce) 988315 (Sn: 000101 & Above)
36" 15hp (Hr1536fxpce) 988316 – (Sn: 000101 & Above)
44" 15hp (Hr1544fxpce) 988319 (Sn: 000101 & Above)
48" 17hp (He1748flpce) 988320 (Sn: 000101 & Above)
Zoom Zero-Turn Mower 25hp Koh.
52" (2552 Xl) 992062 (Sn: 000101 & Above)
60" (2560 Xl) 992063 (Sn: 000101 & Above)
Pro-Master Zero-Turn Mower Kw. Engine
44" (Pm 144 Z) 992312 21hp (Sn: 000101–000999)
992315 19hp (Sn: 004000 & Above)
Compatible with Gravely Models:
50" 890012 (000101 & Above)
60" 889034 – (000101 & Above)
60" 890013 – (000101 & Above)
60" 889035 (000101 & Above)
60" 890014 (000101 & Above)
889036 (000101 & Above)
988100 (000101 & Above)
988102 (000101 & Above)
988105 (000101–002999)
Gr 1536 Fx 15hp 988101 (000101 & Above)
Gr 1548 Fl 15hp 988103 (000101 & Above)
Gr 1748 Fl 17hp 988104 (000101 & Above)
Pro-Gear 36" Gr 1336 Fx 13hp
Pro-Gear 48" Gr 1548 Fx 15hp
Pro-Hydro 36" Hr 1536 Fx 15hp
Pro-Master 310 Mower Decks
Pro-Master 400 Mower Decks
Pro-Master 310 50" Mower Decks
Pro-Hydro 48" Walk-Behind Mower
988106 (HR 1548 FX) (SN: 000101 & Above) 15hp Kw.
988107 (HE 1748 FL) (SN: 000101–002999) 17hp Kw.
988108 (HE 1748 FL) (SN: 000101 & Above) 17hp Kw.
Pro-Hydro 52" Walk-Behind Mower, 17hp Kw.
988109 (HE 1752 FL) (SN: 000101–001999)
Pro-Master 50" Zero-Turn Mower
992018 (PM 250Z) 25hp Koh.. (SN: 000101–009999)
992020 (PM 260Z) 25hp Koh. (SN: 000101–009999)
992021 (PM 250Z) 22hp Rob. Sub. (SN: 000101–009999)
992022 (PM 260Z) 25hp Koh. (SN: 000101–009999)
992023 (PM 250Z) 20hp B&S (SN: 000101–009999)
992024 (PM 260Z) 22hp Rob. Sub. (SN: 000101–009999)
992305 (PM 250Z) 22hp Rob. Sub. (SN: 000101–009999)
Order Includes:
2x Mower Deck Spindle Pulleys: Ariens, Gravely: 07331067, 09242500
Outer Diameter: 133 mm - 5.23 in
Inner Diameter: 25.5 mm - 1 in
Pulley Flat Width: 14.5 mm - 0.57 in
Height: 28 mm - 1.10 in
