Specifications
- MPN
- 07053400, 06445700, 06400829, 58803600, 59201000, 59114000, 08779251, 08779200, 08899000, 08904600, 025124, 03498400, 014668, 03498400, 011234, 08861600, 08899300, 08899400, 08816600, 046999, 08979600, 08899600, 09097100, 09290500, 09097100, 08898900, 09252600, 08866800, 08899200, 09246700, 05970800, 00450200, 396809, 320500, 09081200, 09290600, 09082400, 59125000
- Mpn
- 07053400, 06445700, 06400829, 58803600, 59201000, 59114000, 08779251, 08779200, 08899000, 08904600, 025124, 03498400, 014668, 03498400, 011234, 08861600, 08899300, 08899400, 08816600, 046999, 08979600, 08899600, 09097100, 09290500, 09097100, 08898900, 09252600, 08866800, 08899200, 09246700, 05970800, 00450200, 396809, 320500, 09081200, 09290600, 09082400, 59125000
- Type
- Bolt
- Brand
- Caltric
- Color
- Gold
- Model
- For Ariens: 07053400, 06445700, 06400829
- Voltage
- 12 V
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
Description
Premium
Quality Replacement Part

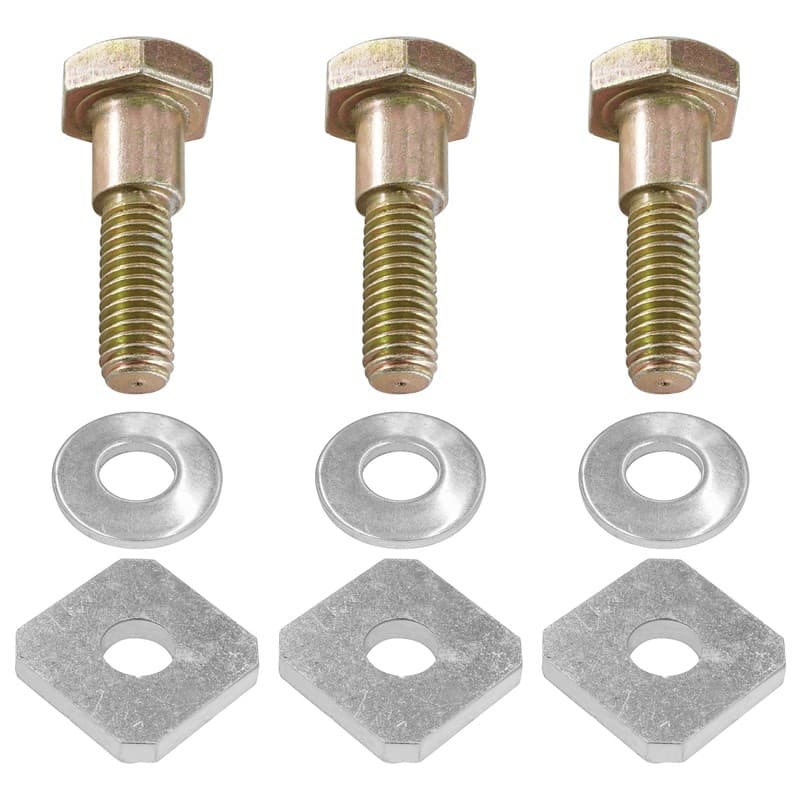

Deck Spindle Blade Bolts with Washers
Compatible with Ariens Models:
Zero-Turn Mower 50"
992028 (2050) 20hp B&S (SN: 000101 & Above)
Compatible with Gravely Models:
Tractor Decks
885003 40" (Sn: 000522 & Above)
885005 40" (Sn: 000367 & Above)
885006 50" (Sn: 003998 & Above)
885007 50" (Sn: 000340 & Above)
887003 60" (Sn: 000768 & Above)
Pro-Walk Mower Decks
888003 36" (Sn: 010000 & Above)
888005 40" (Sn: 000101 & Above)
888006 50" (Sn: 000101 & Above)
888008 60" (Sn: 000367 & Above)
888015 50" (Sn: 011000 & Above)
888047 36" 150 (Sn: 010000 & Above)
888048 50" 150 (Sn: 010000 & Above)
888301 36" 150 (Sn: 010000 & Above)
888302 36" Multi-Mode (Sn: 011000 & Above)
Pro-Master Mower Decks
(Sn:012000 - 030999)
889034 60" 400 (Sn: 000101 & Above)
889035 72" 400 (Sn: 000101 & Above)
889036 72" 400 (Sn: 000101 & Above)
889037 60" 300 (Sn: 014000 & Above)
889038 50" 300 (Sn: 013000 & Above)
890012 50" 310 (Sn: 000101 & Above)
890013 60" (Sn:000101 & Above)
890014 72" (Sn:000101 & Above)
991089 44"(Sn:050000 & Above) Compact-Pro 44
992018 50" (Sn:000101 & Above) Pm250z 25hp Koh.
992020, 992022 60" (Sn:000101 - 009999) Pm260z 25hp Koh.
992021 50" (Sn:000101 & Above) Pm250z 22hp Koh.
992023 50" (Sn:000101 & Above) Pm250z 20hp B&S

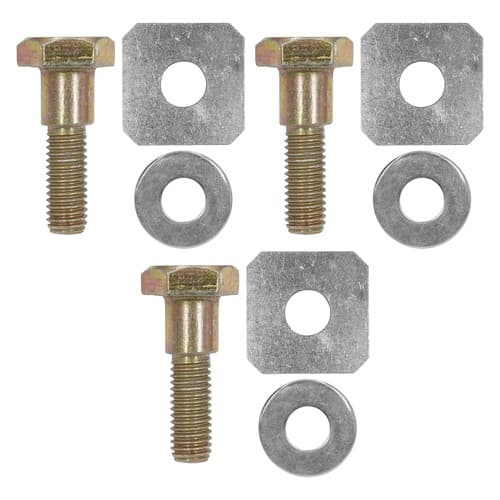

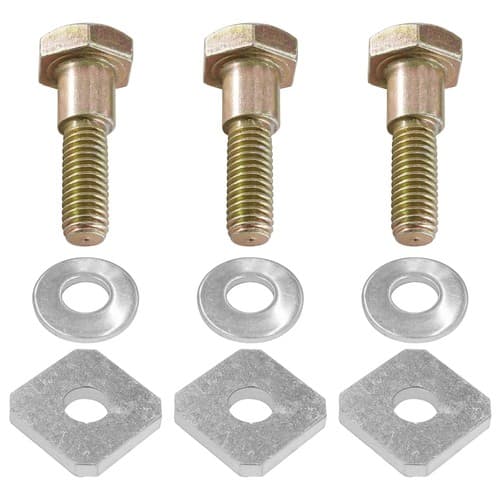

Order Includes:

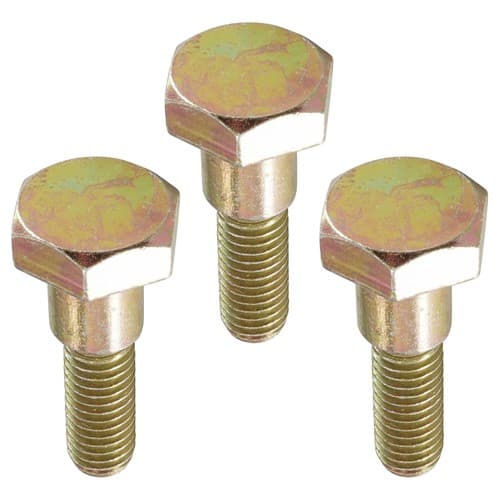

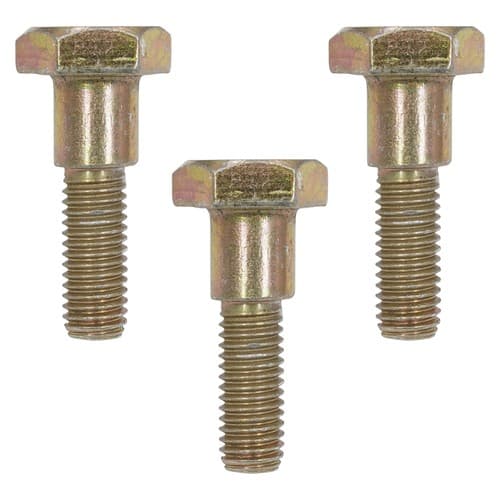

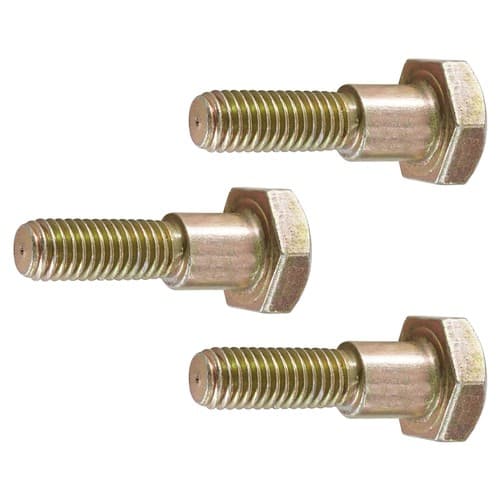

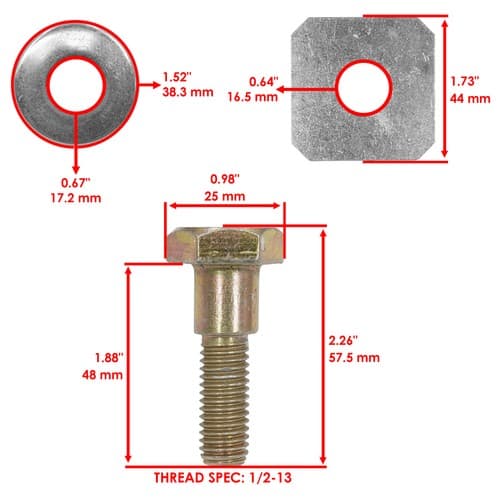

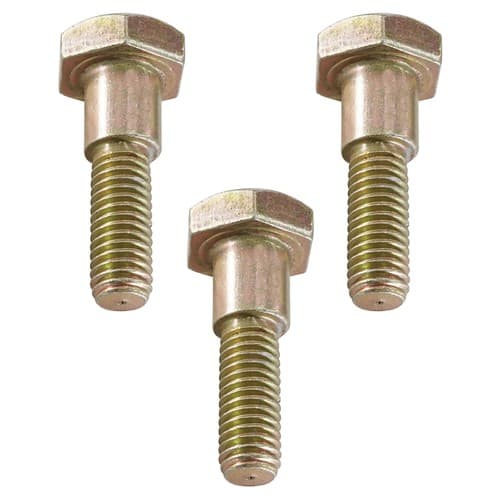

3x Bolt: Ariens: 07053400, 05970800
Length: 57.5 mm - 2.26 in
Stud Length: 48mm - 1.88 in
Head Diameter: 25 mm - 0.98 in
Thread Size: 1/2-13
3x Belleville Washer: 06445700
Inner Diameter: 17.2 mm - 0.67 in
Outer Diameter: 38.3 mm - 1.52 in
3x Flat Washer: Ariens: 06400829
Width: 44 mm - 1.73 in
Inner Diameter: 16.5 mm - 0.64 in
